AMIA
Window Type: Signature Max. Reg A/B to 70 M/S. Max. Reg C to 60 M/S
Glass Thickness and Type: 4mm Clear Float
Barriers or Mesh Screens: None
Price:
$539.00

Quality Australian Made Sliding Window, select your opening side and screen options

  • National Distribution
  • Quality Packaging to protect the product until it arrives to your site. In the unlikely event of damage it will be replaced free of charge.
  • Smart design – combination finned + face fixed
  • Trim Bead – helps visually hide external fixings included on all our windows

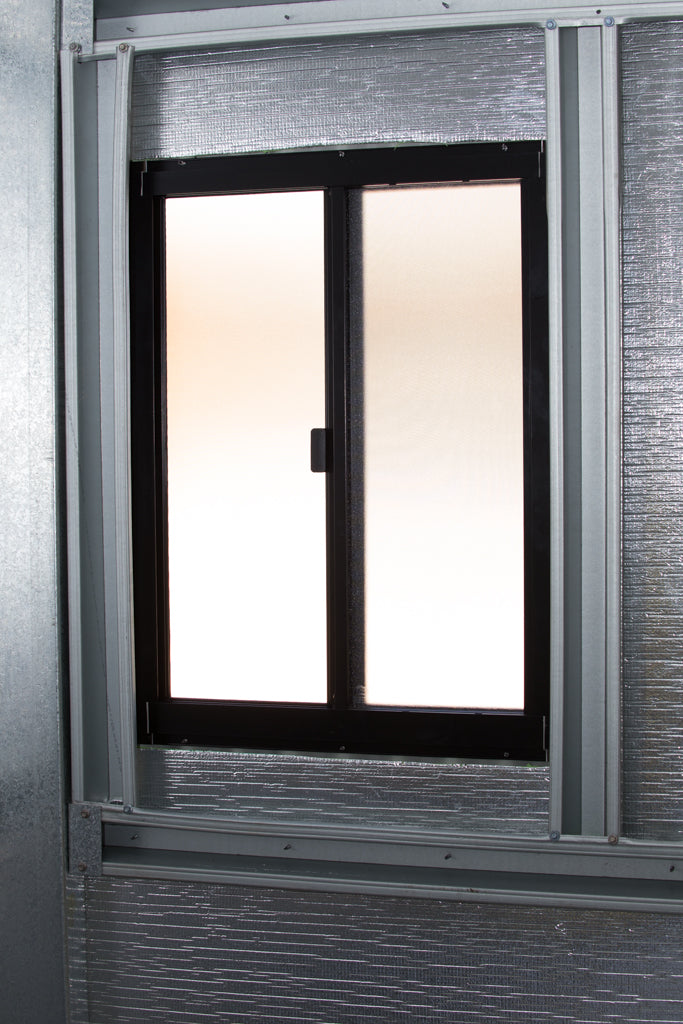

  • Cladding – our window width size to suits all common steel shed profile. When using Corro this widths become more critical. Will accommodate cladding profiles up to 29mm depth. {Trimdeck and Trimclad}
  • Guarantee – 6 years “peace of mind” Warranty
  • Stainless steel ball bearing rollers and large 16mm diameter wheel ensures long term performance and a smooth sliding action. These rollers are fully adjustable in height to ensure sashes glides smoothly and finished flush to the frame.
  • Black plastic sill inlay to assist with drainage and restrict the accumulation of dirt and other matter in the sill cavity. This makes cleaning easier.

Windows can be rotated 180 degress, so there is not a Left or Right Opening option when ordering.

Trim Bead Extension – fits behind trim bead to complete the concealment of fixings

Vertical Cladding – fitted to jambs

Horizontal Cladding – fitted to head + sill

Self-latching handle located at the mullion for easy access and convenient pivot action

Fixed and sliding sashes are independent of the perimeter frame to minimize the transfer of loads onto the glass and provide better thermal insulation.

  • Visually pleasing – neaten any inaccurate cutting of the window and door openings
  • Save installation time – “goodbye” to cutting extra flashing to trim this door
  • 22 Standard Colorbond Colours supplied at one standard cost
  • Frame – 48mm powder coated aluminium
  • Glass – standard 4mm minimum
  • Reglazing – sashes independent of frame to facilitate reglazing

Any glass within 400mm of the outside ground level (including deck or patio) must be min. 5mm Toughened
BAL 12.5
Windows
• Standard 4mm Float Glass
• Aluminium or Stainless Steel mesh screens covering the opening panel only
Doors
• Standard 4mm Toughened Safety Glass
• If a screen is requested by customer, Aluminium or Stainless Steel mesh must be used
BAL 19
Windows
• Standard 4mm Float Glass
• Aluminium or Stainless Steel mesh screens covering full face of the window
OR
• 5mm Toughened Safety glass
• Aluminium or Stainless Steel mesh screen covering the opening panel only
This is typically the more cost-effective of the two options
Doors
• 5mm Toughened Safety Glass
• If a screen is requested by customer, Aluminium or Stainless Steel mesh must be used
BAL 29
Windows
• 5mm Toughened Safety glass
• Aluminium or Stainless Steel mesh screen covering the opening panel only
Doors
• 6mm Toughened Safety Glass
• If a screen is requested by customer, Aluminium or Stainless Steel mesh must be used
BAL 40
Windows
• 6mm Toughened Safety Glass
• Stainless Steel mesh screen covering the full face of the window
Doors
• 6mm Toughened Safety Glass
• Stainless Steel mesh screen covering the full face of the door
FZ (Flame Zone)
Windows and Doors must be completely protected by Bushfire Shutters (not supplied by AMIA)

U-VALUE

The U-value is the measure of how much heat is transferred through the window. The lower the U-value the better the insulation properties of the aluminiumwindow – the better it is at keeping the heat or cold out. In all cases regardless of climate zone an aluminium window with good insulation properties will help to improve the comfort of your home. To comply with energy reports U values must be Lower than or equal to that specified in the report.

S Value - Solar Heat Gain Coefficient or SHGC is a measure of how much solar radiation passes through the window. In a cool climate, windows which have a high SHGC allow a greater amount of solar radiation to pass through, offering free solar heating for the home

Save installation time – “goodbye” to cutting extra flashing to trim this door

  • Installation – fast + easier at end of build
